In the world of advanced materials, graphite is far more than a common material, it is a critical component in lithium-ion batteries, electrodes, refractories, and high-performance composites. Transforming organic carbon sources such as biomass or petroleum pitch into highly ordered structure of carbon atoms, graphite requires a carefully controlled thermal process. This transformation is enabled through advanced high-temperature furnaces designed to deliver precision, consistency, and scalability.

At Ants Innovations, our thermal processing systems are engineered to make this complex conversion reliable and efficient. The process typically involves two key stages: Pyrolysis, carbonization and graphitization.

Pyrolysis: Thermal Decomposition of Organic Matter

The journey begins with pyrolysis, where organic precursors such as coconut shells, wood biomass, agricultural waste, or petroleum pitch are heated in an oxygen-free environment at 300–600 °C. During pyrolysis, complex organic molecules thermally decompose into char, bio-oil, and gaseous products. The process breaks down cellulose, hemicellulose, and lignin structures in biomass, leaving behind a carbon-rich solid residue. This step determines the initial carbon structure, porosity, and yield, which strongly influence the quality of the final graphite. Controlled heating rates and inert gas environments help maximize char yield while minimizing unwanted oxidation or structural defects.

Carbonization: Removing Volatile Components

After pyrolysis, thermal decomposed material undergoes carbonization, typically carried out between 600–900°C under an inert atmosphere such as nitrogen or argon. At this stage, remaining volatile compounds, tars, hydrogen, and oxygen-containing groups are removed, resulting in a more stable amorphous carbon framework. The structure becomes increasingly carbon-rich and begins to develop short-range ordering. Rotary tube Furnaces
provide uniform heating with controlled temperature ramps and continuous nitrogen purging. This ensures high-purity char formation with yields typically in the range of 70–80 %, providing a reliable precursor for graphitization.

Graphitization: Crystalline Graphite

The final transformation occurs during graphitization, where the carbon structure reorganizes into highly ordered hexagonal graphite crystals. This process requires ultra-high temperatures between 2000–2500°C in specialized induction furnaces operating under vacuum or inert atmosphere. Under these extreme conditions, carbon atoms rearrange into stacked graphene layers, forming graphite with a graphitization degree exceeding 95 %. Impurities such as sulfur or residual ash are vaporized or segregated during the process, further improving material purity. Maintaining uniform thermal conditions and adequate dwell time is critical; otherwise, the carbon may remain in a turbostratic form, lacking the long-range crystalline order required for high-performance applications.





Ants Innovations provides advanced thermal processing systems designed for demanding carbon materials processing:

• Precision Temperature Control: Advanced PID systems maintain stability within ±5 °C, even at temperatures approaching 2500 °C.
• Scalable Solutions: Furnace configurations support both laboratory-scale research and industrial production.
• Energy Efficiency: Induction heating technologies can reduce energy consumption by 20–30 % compared with conventional resistance heating.
• Application Versatility: Suitable for producing materials used in Li-ion battery anodes, refractories, carbon composites, and nuclear-grade graphite.

Sustainable graphite production from biomass-derived carbon sources is emerging as a promising alternative to mined natural graphite. With advanced thermal processing technology, Ants Innovations supports industries and researchers in developing scalable and environmentally responsible graphite production pathways.

Thermal processing involves more than just providing heat; it focuses on controlling the chemical environment that drives material transformation. The atmosphere inside a furnace or thermal chamber can affect oxidation, reduction, grain growth, and surface chemistry, thereby governing the overall material’s properties and performance. Air may work for certain heat treatments, but many materials require specific gas atmospheres, such as argon, nitrogen, hydrogen, or pure oxygen, to achieve the desired structures and properties. Understanding the role of each gas is crucial for materials researchers using thermal processing equipment.

Argon: Inert Shield

Argon is a noble gas that is chemically inert across the entire temperature range used in thermal processing. Since it does not react with metals, ceramics, or most compounds, argon provides a stable, contamination-free environment for sensitive processes. It is commonly used in sintering, annealing, and crystal growth, where even a small amount of oxidation can alter material properties. Although argon is more expensive than nitrogen, its reliability is vital when working with highly reactive elements such as titanium, molybdenum, and rare-earth metals.

Nitrogen: Inert & budget-friendly

Nitrogen is the most frequently used atmosphere in thermal processes due to its low cost and inert nature at moderate temperatures. It is effective for heat treating ferrous alloys, cooling cycles, and blanketing operations. However, nitrogen can form nitrides with elements such as titanium, chromium, and aluminium at high temperatures, making it unsuitable for some advanced materials. Nevertheless, for less reactive systems, nitrogen strikes a practical balance between protection and cost, especially in steel annealing or powder processing.

Hydrogen: Reducing Agent

Hydrogen is a highly reactive gas that effectively removes surface oxides and reduces metal compounds. It is especially useful for processes that require bright, clean metallic surfaces, such as bright annealing of stainless steel, reduction of metal oxides, and processing of refractory metals. Hydrogen’s ability to chemically reduce metal oxides makes it essential in powder metallurgy and the synthesis of catalytic materials. However, due to its flammability and explosion risk, hydrogen must be handled with strict safety measures, including leak detection, inert purging, and controlled flow systems.

Oxygen: Reaction Agent

Though often avoided in many thermal processes because of its oxidative properties, oxygen has a useful role in specific applications. In the synthesis of metal oxides, ceramics, and perovskite materials, oxygen is necessary to stabilise the desired phases or valence states. It is also critical in calcination, combustion synthesis, and oxidative annealing, which help remove volatile organics or modify surfaces. Controlled-oxygen atmospheres can be used to produce high-purity oxide films or to adjust catalytic activity. However, uncontrolled exposure to oxygen at high temperatures can cause undesirable oxidation, scaling, or grain boundary embrittlement in metals, so precise control is vital.

Mixed Atmospheres in Materials Research

Modern research often involves custom gas blends to optimise reactivity. For example, an argon-hydrogen mixture creates a mostly inert, partially reducing environment, ideal for sintering without aggressive oxidation. Similarly, blends of nitrogen and hydrogen provide cost-effective treatments with mild reducing effects. Oxygen can also be mixed with inert gases in small amounts to control oxide stoichiometry or induce partial oxidation in functional materials. These mixed atmospheres allow researchers to better control phase formation, reaction kinetics, and surface chemistry during thermal treatment.

Working with gas atmospheres, especially flammable or oxidising ones, requires strict safety practices. Hydrogen needs sealed chambers, purging routines, and active monitoring. Oxygen, though not flammable, intensifies combustion and fire risks with leaks. Gas systems should have regulators, flow meters, check valves, and ventilation. Furnace users must follow protocols for startup, shutdown, and emergency situations, especially with reactive gases. Safety is vital for successful thermal experiments. For materials researchers, understanding safety and gas roles is crucial for effective processing. Choosing the right gas among argon, nitrogen, hydrogen, or oxygen affects material properties, process safety, efficiency, and scalability.

Understanding the high-temperature behaviour of iron-bearing materials is vital for efficient blast furnace operation. In a blast furnace, iron ore pellets undergo transformations such as drying, reduction, stabilization as sponge iron, softening, melting, and dripping as pig iron, especially between 1100°C and 1500°C. These stages affect gas permeability and the cohesive zone formation, critical for stable, smooth operation. Understanding these processes is key to predicting material performance and maintaining efficiency. Need to Study the Thermal Behaviour of Iron Ore Pellets Iron ore pellets undergo extreme physical and chemical changes in the blast furnace: transitioning from solid to porous metal, softening under mechanical load, partially melting, and finally turning into liquid iron at temperatures above 1100°C. These conditions cannot be accurately simulated in conventional laboratory furnaces. Since iron-bearing materials account for up to 70% of the burden, understanding their high-temperature behaviour is essential for raw material selection, pellet blend optimization, reduced coke rates, and stable furnace operation. A single unstable furnace event can lead to major economic losses, including emergency shutdowns, refractory damage, and productivity declines, costs that far exceed the price of a specialized furnace for controlled lab evaluation. At ANTS Innovations, we introduce our Custom-Built Softening & Melting (S&M) Furnace, designed to simulate blast furnace conditions to help steel plants optimize raw materials and increase productivity. The Softening & Melting (S&M) Furnace replicates the key thermal and mechanical conditions of a blast furnace, enabling controlled, repeatable laboratory testing. Unlike the dynamic environment in a blast furnace, which involves complex heat transfer, gas flow, and burden movement, the S&M furnace offers a stable platform for evaluating the softening, melting, and permeability characteristics of iron ore pellets. This allows steel plants and research labs to predict cohesive zone behaviour without the variability and risks associated with full-scale furnace trials.
This furnace enables steel plants and R&D labs to accurately determine softening temperature (Ts), melting temperature (Tm), and the Softening–Melting Interval (ΔT), key indicators of BF permeability and stability.

Softening–Melting Interval (ΔT = Tm – Ts)

• Narrow ΔT → Better permeability → More efficient BF
• Wide ΔT → Poor gas flow → Risk of instability

Our S&M furnace is engineered to replicate the exact thermo-mechanical environment inside a blast furnace, enabling accurate prediction of pellet behavior.

Key Technical Features

• Maximum temperature: 1600°C
• Vertical split tube design for easy sample access
• Temperature uniformity: ±5°C
• Hot zone length: 130–140 mm
• Heating elements: High efficiency MoSi₂
• Atmosphere control: Inert (N₂) or reducing (30% CO / 70% N₂)
• Load capability: Simulates BF pressure with a 2 kg/cm² hydraulic press.

The demand for high-performance batteries is accelerating, and carbon nanomaterials, particularly carbon nanotubes (CNTs) and graphene, are emerging as game changers. These advanced additives enhance electrical conductivity, mechanical strength, and thermal stability, enabling batteries to deliver higher energy density, faster charging, and longer cycle life.



CVD Growth of CNTs and Graphene: A high-temperature reaction conducted within the range of 700 to 1000°C, which must be carried out under carefully controlled gas flow conditions. The gases used in this reaction include methane (CH₄), hydrogen (H₂), and argon (Ar), all of which must be managed precisely to ensure optimal results. The setup utilizes a tube furnace with multiple zones, which is particularly suitable for this application due to its ability to provide accurate temperature control. Additionally, this type of furnace facilitates easy handling of substrates, making it an ideal choice for experiments or production processes that demand precise temperature regulation and straightforward substrate manipulation.

Graphitization for Crystallinity: Heat treatment involving exposure to ultra-high temperatures ranging from 2500 to 3000°C is employed to enhance the material’s electrical conductivity and improve its structural order. This process ensures a more uniform and reliable performance by optimizing the internal atomic arrangement within the material. To facilitate precise control over the heating process, a special induction-based furnace and Graphite heaters are used. This advanced equipment enables uniform heating throughout the specimen and offers programmable temperature gradients, allowing researchers to tailor the thermal profile according to specific experimental requirements.

Surface Functionalization & Annealing: Post-synthesis annealing is performed at 300–800°C to modify surface chemistry and enhance dispersion in electrode slurries. A rapid thermal annealing furnace provides fast, controlled heating cycles.

Continuous Powder Processing for Composite Electrodes: This process involves the large-scale treatment of CNT and graphene powders for industrial manufacturing. The rotary tube furnace is employed to ensure uniform mixing and consistent heating during continuous operation, with the furnace designed to provide reliable temperature control and efficient processing throughout the production cycle.

The future of advanced batteries and functional materials depends on precision at every stage of production, and thermal processing is the cornerstone of that precision. Accurate and reliable furnaces are not just equipment; they are enablers of performance, safety, and scalability. From calcination and phase stabilization to coating and graphitization, each step demands controlled temperature profiles, uniform heating zones, and stable atmospheres. Investing in high-quality thermal systems ensures consistent material properties, longer component life, and a competitive advantage in a rapidly evolving energy landscape. The right furnace is the foundation of the right material.

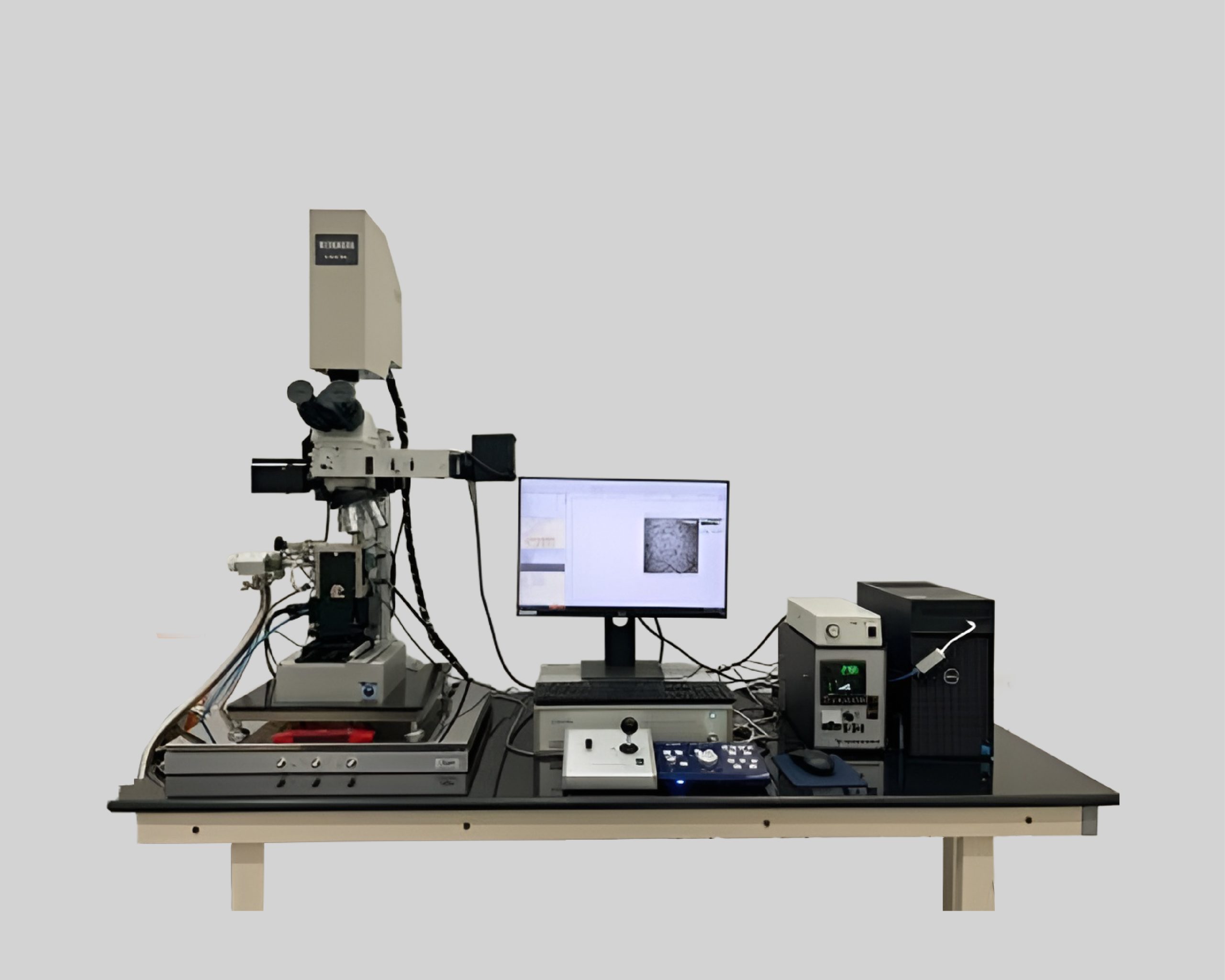

Understanding how materials evolve at high temperatures is critical for designing next-generation metals, ceramics, and functional materials. The High-Temperature Confocal Scanning Laser Microscope (HT-CSLM) enables real-time, in situ visualization of microstructural evolution under controlled thermal and atmospheric conditions, thereby bridging the gap between theory, simulation, and real processing environments. Unlike conventional post-mortem techniques, HT-CSLM captures dynamic phenomena as they happen, delivering unmatched insight into phase transformations, grain evolution, melting, solidification, and interfacial reactions.



Key Application Areas

Metals & Alloys

HT-CSLM is a powerful tool for metallurgical research and process optimization, enabling detailed analysis of the solidification and melting behavior of steels and alloys, as well as inclusion behavior at liquid metal–gas and solid–liquid interfaces. It allows in-situ observation of inclusion agglomeration, flotation, and dissolution, and facilitates studies of recrystallization and grain growth during annealing. Additionally, it provides insights into grain boundary migration and thermal grooving, as well as phase transformations under controlled heating and cooling cycles. Its applications span steelmaking, alloy development, casting, welding, additive manufacturing, and heat-treatment optimization.

Heat Treatment & Process Kinetics

HT-CSLM enables direct visualization of microstructural kinetics, allowing for the observation of how cooling rates influence phase morphology such as pearlite lamellar spacing, the study of transformation temperatures and mechanisms, and the optimization of industrial heat-treatment schedules. It also facilitates the validation of thermodynamic and kinetic models. This capability makes HT-CSLM invaluable for both research and development laboratories as well as industrial process development.

Tool Steels & Carbide Engineering

For advanced steels and ESR-processed alloys, the process involves in-situ melting and dissolution of carbides, followed by observation of carbide precipitation during heating and cooling. The cooling rate has a significant influence on carbide size, distribution, and volume fraction, and a correlation exists between carbide behavior and mechanical performance.

Thin Films & Functional Coatings

HT-CSLM offers unique insights into the stability of thin films at elevated temperatures. It enables the examination of thermal stability and hydrophobic behavior in metallic thin films, while also observing hole formation, ligament breakup, and island formation. Additionally, it enables real-time monitoring of surface morphology evolution during annealing. The technology finds applications in microelectronics, energy devices, catalysts, and protective coatings.

Ceramics & Refractories

For high-temperature ceramic systems, research focuses on grain growth and phase evolution in refractories, the dissolution behavior of spinels and secondary phases, and the study of reaction kinetics at extreme temperatures, reaching approximately 1600 °C. Additionally, it provides insights into degradation mechanisms in metallurgical refractories. This work supports the development of materials for industries such as steel, non-ferrous metals, glass, and energy.

HT-CSLM offers real-time, in-situ observation at high temperatures with controlled inert atmospheres, providing high spatial and temporal resolution. It enables direct correlation between processing conditions and microstructure, making it ideal for academic research, industrial R&D, and model validation. From fundamental studies to industrial applications, it allows live monitoring of material evolution. For more information, please contact us via email sales@antsglobal.in.

India’s transition to electric mobility and renewable energy hinges on cathode active materials (CAM), the backbone of lithium-ion batteries. CAM accounts for 40–50% of battery cost, making it a critical component for performance, safety, and affordability. As EV adoption accelerates, India faces an urgent need to localize the production of cathode materials to reduce import dependence and strengthen its supply chains.

Industry leaders emphasize this priority: “India will require at least 150,000 tonnes of cathode material annually by 2030. Building a strong domestic supply chain is essential for sustainability and cost competitiveness.”: Ankit Sharma, Vidyuta Materials

The Production-Linked Incentive (PLI) scheme empowers India’s manufacturing transformation by offering performance-based rewards to companies for achieving incremental sales and investments, specifically across 14 strategic sectors, including batteries, electronics, pharmaceuticals, and specialty steel.



Key Roles of Heat Treatment in CAM Production

The production of cathode active materials (CAM) involves multiple stages where thermal processing is the key enabler for achieving the desired electrochemical performance. Heat treatment is the backbone of the entire manufacturing line as it defines the crystal structure, phase purity, and particle morphology that directly impact battery capacity, cycle life, and safety.

• Calcination of Precursors, such as hydroxides or carbonates, is converted into stable oxide phases through controlled calcination at high temperatures (typically 700–1000°C). This step ensures proper phase formation and removes residual moisture or volatile compounds.
• Phase Stabilization & Doping: Multi-element cathode materials (e.g., NMC, LFP) require precise thermal profiles to stabilize crystal lattices and incorporate dopants uniformly. Incorrect heating can lead to unwanted phases or structural defects.
• Controlled Atmosphere Processing: Heat treatment under specific atmospheres (oxygen-rich, inert, or vacuum) is crucial for maintaining oxidation states and preventing contamination. For example, oxygen control is critical for NMC cathodes to avoid oxygen vacancies.
• Particle Size & Morphology Control: Thermal conditions influence grain growth and surface characteristics, which in turn affect lithium-ion diffusion and the overall battery performance.
• Coating & Surface Modification: Post-calcination heat treatment facilitates the application of protective coatings (e.g., carbon or oxide layers) to enhance stability and mitigate electrolyte decomposition.



Ants Innovations’ Furnace technologies, offering precise thermal control, are central to cathode material production. Split and multi-zone tube furnaces handle calcination and phase stabilization under controlled atmospheres, ensuring uniform crystal structures and dopant distribution. Rotary tube furnaces enable continuous large-scale powder processing with consistent heating and mixing. Rapid thermal annealing furnaces improve surface coatings and microstructure, while vacuum induction melting furnaces produce high-purity blends and pre-lithiation under inert conditions. These systems ensure repeatable performance, scalability, and quality, which are essential for India’s expanding cathode industry.

Necessity of Controlled Atmospheres in Thermal Treatment

In modern materials science and metallurgy, maintaining purity and preventing contamination during the thermal treatment of materials is critical. Vacuum and inert atmosphere technologies enable processes like melting, sintering, and crystal growth under conditions that eliminate oxidation and unwanted reactions. These technologies form the backbone of high-performance industries, ranging from aerospace alloys to semiconductor materials.



Core Equipment for High-Purity Processing of Materials

1. Retort-based Furnaces

• Specifications: 800–1800°C; Retort design for sealed processing; compatible with Argon, Nitrogen, and reducing gases.
• Applications: Thermal treatment of metals and ceramics, roasting, calcination, and decomposition under inert conditions to prevent oxidation and contamination.

2. Vacuum Tube Furnaces

• Specifications: 800–1800°C, vacuum ≤10⁻⁵ mbar, multi-zone heating, uniformity ±2°C.
• Applications: Heat treatment, diffusion, reduction, and sintering under vacuum or controlled atmospheres for metals, ceramics, and composites.

3. Vacuum Induction Furnaces

• Specifications: Up to 2800°C, induction power 25–200 kW, graphite or ceramic crucibles, controlled inert/reducing atmospheres.
• Applications: Melting, alloying, refining of metals and superalloys, graphitization, and carbon–carbon composite densification.

4. Vacuum Arc Melting Systems

• Specifications: Up to 3000°C, arc current up to 800 A, water-cooled copper hearth, multi-electrode operation.
• Applications: High-purity melting and alloying of reactive metals like titanium and zirconium, laboratory ingot production.

5. Vacuum Hot Press

• Specifications: Up to 1800°C, vacuum ≤10⁻⁵ mbar, uniaxial pressure up to 100 kN.
• Applications: Densification, sintering, and diffusion bonding of ceramics, metals, and composites for high-density functional materials.



Applications Across Industrial Sectors

1. Critical Metal Extraction : ARC melting, induction melting, and vacuum furnaces for refining rare and reactive metals.

2. Advanced Ceramics : Controlled sintering and diffusion bonding for aerospace and electronics.

3. Semiconductors & Crystal Growth: Bridgman furnaces and chemical vapour transport systems for defect-free crystals.

4. Energy Materials: Graphitization furnaces for carbon composites and battery components.

5. Thin Film & Coating: Tube furnaces for CVD, PECVD, and graphene growth under inert conditions.

Vacuum and inert atmosphere technologies are enablers of innovation in critical metal processing, advanced ceramics, and next-generation energy materials. Adopting these systems ensures the precision, purity, and performance of materials for multiple strategic industries that shape the future.
