The demand for high-performance batteries is accelerating, and carbon nanomaterials, particularly carbon nanotubes (CNTs) and graphene, are emerging as game changers. These advanced additives enhance electrical conductivity, mechanical strength, and thermal stability, enabling batteries to deliver higher energy density, faster charging, and longer cycle life.



CVD Growth of CNTs and Graphene: A high-temperature reaction conducted within the range of 700 to 1000°C, which must be carried out under carefully controlled gas flow conditions. The gases used in this reaction include methane (CH₄), hydrogen (H₂), and argon (Ar), all of which must be managed precisely to ensure optimal results. The setup utilizes a tube furnace with multiple zones, which is particularly suitable for this application due to its ability to provide accurate temperature control. Additionally, this type of furnace facilitates easy handling of substrates, making it an ideal choice for experiments or production processes that demand precise temperature regulation and straightforward substrate manipulation.

Graphitization for Crystallinity: Heat treatment involving exposure to ultra-high temperatures ranging from 2500 to 3000°C is employed to enhance the material’s electrical conductivity and improve its structural order. This process ensures a more uniform and reliable performance by optimizing the internal atomic arrangement within the material. To facilitate precise control over the heating process, a special induction-based furnace and Graphite heaters are used. This advanced equipment enables uniform heating throughout the specimen and offers programmable temperature gradients, allowing researchers to tailor the thermal profile according to specific experimental requirements.

Surface Functionalization & Annealing: Post-synthesis annealing is performed at 300–800°C to modify surface chemistry and enhance dispersion in electrode slurries. A rapid thermal annealing furnace provides fast, controlled heating cycles.

Continuous Powder Processing for Composite Electrodes: This process involves the large-scale treatment of CNT and graphene powders for industrial manufacturing. The rotary tube furnace is employed to ensure uniform mixing and consistent heating during continuous operation, with the furnace designed to provide reliable temperature control and efficient processing throughout the production cycle.

The future of advanced batteries and functional materials depends on precision at every stage of production, and thermal processing is the cornerstone of that precision. Accurate and reliable furnaces are not just equipment; they are enablers of performance, safety, and scalability. From calcination and phase stabilization to coating and graphitization, each step demands controlled temperature profiles, uniform heating zones, and stable atmospheres. Investing in high-quality thermal systems ensures consistent material properties, longer component life, and a competitive advantage in a rapidly evolving energy landscape. The right furnace is the foundation of the right material.



Understanding how materials evolve at high temperatures is critical for designing next-generation metals, ceramics, and functional materials. The High-Temperature Confocal Scanning Laser Microscope (HT-CSLM) enables real-time, in situ visualization of microstructural evolution under controlled thermal and atmospheric conditions, thereby bridging the gap between theory, simulation, and real processing environments. Unlike conventional post-mortem techniques, HT-CSLM captures dynamic phenomena as they happen, delivering unmatched insight into phase transformations, grain evolution, melting, solidification, and interfacial reactions.



Key Application Areas

Metals & Alloys

HT-CSLM is a powerful tool for metallurgical research and process optimization, enabling detailed analysis of the solidification and melting behavior of steels and alloys, as well as inclusion behavior at liquid metal–gas and solid–liquid interfaces. It allows in-situ observation of inclusion agglomeration, flotation, and dissolution, and facilitates studies of recrystallization and grain growth during annealing. Additionally, it provides insights into grain boundary migration and thermal grooving, as well as phase transformations under controlled heating and cooling cycles. Its applications span steelmaking, alloy development, casting, welding, additive manufacturing, and heat-treatment optimization.

Heat Treatment & Process Kinetics

HT-CSLM enables direct visualization of microstructural kinetics, allowing for the observation of how cooling rates influence phase morphology such as pearlite lamellar spacing, the study of transformation temperatures and mechanisms, and the optimization of industrial heat-treatment schedules. It also facilitates the validation of thermodynamic and kinetic models. This capability makes HT-CSLM invaluable for both research and development laboratories as well as industrial process development.

Tool Steels & Carbide Engineering

For advanced steels and ESR-processed alloys, the process involves in-situ melting and dissolution of carbides, followed by observation of carbide precipitation during heating and cooling. The cooling rate has a significant influence on carbide size, distribution, and volume fraction, and a correlation exists between carbide behavior and mechanical performance.

Thin Films & Functional Coatings

HT-CSLM offers unique insights into the stability of thin films at elevated temperatures. It enables the examination of thermal stability and hydrophobic behavior in metallic thin films, while also observing hole formation, ligament breakup, and island formation. Additionally, it enables real-time monitoring of surface morphology evolution during annealing. The technology finds applications in microelectronics, energy devices, catalysts, and protective coatings.

Ceramics & Refractories

For high-temperature ceramic systems, research focuses on grain growth and phase evolution in refractories, the dissolution behavior of spinels and secondary phases, and the study of reaction kinetics at extreme temperatures, reaching approximately 1600 °C. Additionally, it provides insights into degradation mechanisms in metallurgical refractories. This work supports the development of materials for industries such as steel, non-ferrous metals, glass, and energy.

HT-CSLM offers real-time, in-situ observation at high temperatures with controlled inert atmospheres, providing high spatial and temporal resolution. It enables direct correlation between processing conditions and microstructure, making it ideal for academic research, industrial R&D, and model validation. From fundamental studies to industrial applications, it allows live monitoring of material evolution. For more information, please contact us via email sales@antsglobal.in.

India’s transition to electric mobility and renewable energy hinges on cathode active materials (CAM), the backbone of lithium-ion batteries. CAM accounts for 40–50% of battery cost, making it a critical component for performance, safety, and affordability. As EV adoption accelerates, India faces an urgent need to localize the production of cathode materials to reduce import dependence and strengthen its supply chains.

Industry leaders emphasize this priority: “India will require at least 150,000 tonnes of cathode material annually by 2030. Building a strong domestic supply chain is essential for sustainability and cost competitiveness.”: Ankit Sharma, Vidyuta Materials

The Production-Linked Incentive (PLI) scheme empowers India’s manufacturing transformation by offering performance-based rewards to companies for achieving incremental sales and investments, specifically across 14 strategic sectors, including batteries, electronics, pharmaceuticals, and specialty steel.



Key Roles of Heat Treatment in CAM Production

The production of cathode active materials (CAM) involves multiple stages where thermal processing is the key enabler for achieving the desired electrochemical performance. Heat treatment is the backbone of the entire manufacturing line as it defines the crystal structure, phase purity, and particle morphology that directly impact battery capacity, cycle life, and safety.

• Calcination of Precursors, such as hydroxides or carbonates, is converted into stable oxide phases through controlled calcination at high temperatures (typically 700–1000°C). This step ensures proper phase formation and removes residual moisture or volatile compounds.
• Phase Stabilization & Doping: Multi-element cathode materials (e.g., NMC, LFP) require precise thermal profiles to stabilize crystal lattices and incorporate dopants uniformly. Incorrect heating can lead to unwanted phases or structural defects.
• Controlled Atmosphere Processing: Heat treatment under specific atmospheres (oxygen-rich, inert, or vacuum) is crucial for maintaining oxidation states and preventing contamination. For example, oxygen control is critical for NMC cathodes to avoid oxygen vacancies.
• Particle Size & Morphology Control: Thermal conditions influence grain growth and surface characteristics, which in turn affect lithium-ion diffusion and the overall battery performance.
• Coating & Surface Modification: Post-calcination heat treatment facilitates the application of protective coatings (e.g., carbon or oxide layers) to enhance stability and mitigate electrolyte decomposition.



Ants Innovations’ Furnace technologies, offering precise thermal control, are central to cathode material production. Split and multi-zone tube furnaces handle calcination and phase stabilization under controlled atmospheres, ensuring uniform crystal structures and dopant distribution. Rotary tube furnaces enable continuous large-scale powder processing with consistent heating and mixing. Rapid thermal annealing furnaces improve surface coatings and microstructure, while vacuum induction melting furnaces produce high-purity blends and pre-lithiation under inert conditions. These systems ensure repeatable performance, scalability, and quality, which are essential for India’s expanding cathode industry.

Necessity of Controlled Atmospheres in Thermal Treatment

In modern materials science and metallurgy, maintaining purity and preventing contamination during the thermal treatment of materials is critical. Vacuum and inert atmosphere technologies enable processes like melting, sintering, and crystal growth under conditions that eliminate oxidation and unwanted reactions. These technologies form the backbone of high-performance industries, ranging from aerospace alloys to semiconductor materials.



Core Equipment for High-Purity Processing of Materials

1. Retort-based Furnaces

• Specifications: 800–1800°C; Retort design for sealed processing; compatible with Argon, Nitrogen, and reducing gases.
• Applications: Thermal treatment of metals and ceramics, roasting, calcination, and decomposition under inert conditions to prevent oxidation and contamination.

2. Vacuum Tube Furnaces

• Specifications: 800–1800°C, vacuum ≤10⁻⁵ mbar, multi-zone heating, uniformity ±2°C.
• Applications: Heat treatment, diffusion, reduction, and sintering under vacuum or controlled atmospheres for metals, ceramics, and composites.

3. Vacuum Induction Furnaces

• Specifications: Up to 2800°C, induction power 25–200 kW, graphite or ceramic crucibles, controlled inert/reducing atmospheres.
• Applications: Melting, alloying, refining of metals and superalloys, graphitization, and carbon–carbon composite densification.

4. Vacuum Arc Melting Systems

• Specifications: Up to 3000°C, arc current up to 800 A, water-cooled copper hearth, multi-electrode operation.
• Applications: High-purity melting and alloying of reactive metals like titanium and zirconium, laboratory ingot production.

5. Vacuum Hot Press

• Specifications: Up to 1800°C, vacuum ≤10⁻⁵ mbar, uniaxial pressure up to 100 kN.
• Applications: Densification, sintering, and diffusion bonding of ceramics, metals, and composites for high-density functional materials.



Applications Across Industrial Sectors

1. Critical Metal Extraction : ARC melting, induction melting, and vacuum furnaces for refining rare and reactive metals.

2. Advanced Ceramics : Controlled sintering and diffusion bonding for aerospace and electronics.

3. Semiconductors & Crystal Growth: Bridgman furnaces and chemical vapour transport systems for defect-free crystals.

4. Energy Materials: Graphitization furnaces for carbon composites and battery components.

5. Thin Film & Coating: Tube furnaces for CVD, PECVD, and graphene growth under inert conditions.

Vacuum and inert atmosphere technologies are enablers of innovation in critical metal processing, advanced ceramics, and next-generation energy materials. Adopting these systems ensures the precision, purity, and performance of materials for multiple strategic industries that shape the future.

Functional materials are at the heart of next-generation technologies that respond to external stimuli, are designed for specific applications, and are engineered to exceed conventional mechanical properties. From energy storage and electronics to aerospace and advanced composites, these materials demand precise thermal processing to achieve their desired structure and functionality.

Thermal treatment defines crystal structure, phase stability, and defect control, while processes such as CVD, diffusion, and oxidation enable doping, oxide formation, and the creation of controlled microstructures. Achieving these outcomes requires uniform heating zones, controlled heating/cooling rates, and tailored atmospheres (O₂, H₂, vacuum, or inert gases). In short, thermal process technology is the backbone of functional material performance.

Ants Group provides Advanced Thermal Solutions for Functional Materials

Ants Innovations offers a comprehensive portfolio of thermal process equipment and labware designed for precision, scalability, and reliability:

High-Performance Furnaces

•  Split Tubular Furnace: Ideal for CVD and annealing. It provides uniform heating, making it suitable for chemical vapour deposition and annealing processes.
• Dual & Multi-Zone Split Furnaces: Gradient heating and complex profiles. These furnaces allow precise temperature control across different zones to achieve customized thermal profiles.
• Rapid Thermal Annealing Furnace: Fast, controlled thermal cycles. It enables quick heating and cooling, essential for semiconductor manufacturing and material tuning.
• Rotary Tube Furnace: Continuous processing for powders and catalysts. This design supports high-volume production with uniform treatment of powders.
• Vacuum Arc & Induction Melting Furnaces: High-purity metal processing. They facilitate the melting and casting of metals with minimal contamination and precise control.

Labware & Accessories

•  Alumina and Zirconia crucibles and tubes are known for their excellent high-temperature stability, making them suitable for use in tube furnaces and batch processing. They provide reliable performance in demanding thermal environments, ensuring durability and consistent results.
• Quartz and Graphite labware are designed specifically for specialized thermal environments, where precise temperature control is required. These materials can withstand aggressive conditions, making them ideal for various advanced experiments and procedures.
• Planetary ball mills and tablet press machines are essential tools in sample preparation workflows. They enable efficient grinding, mixing, and compression of samples to achieve the desired material properties and quality.

A rotary tube furnace is a continuous thermal processing system where materials are heated as they travel through a rotating, cylindrical tube. This design ensures uniform heat distribution, efficient mixing, and precise control over residence time, making it a preferred choice for processes requiring consistent thermal treatment.

Key Features and Advantages

• Uniform Heating and Mixing: The rotation of the tube gently tumbles the material, exposing all particles evenly to the heat source. This results in highly uniform temperature profiles and consistent product quality, which is crucial for sensitive materials like battery black mass, catalysts, and advanced ceramics.
• Controlled Atmosphere Processing: Rotary tube furnaces can operate under vacuum, inert, or reactive gas atmospheres. This flexibility allows for oxidation, reduction, pyrolysis, or calcination processes while preventing contamination or unwanted reactions—essential for high-purity applications.
• Continuous and Scalable Operation: Unlike batch furnaces, rotary tube systems support continuous feed and discharge, making them ideal for scaling up from pilot to industrial production. Adjustable rotation speed and temperature zones enable precise control over process parameters.

Applications of Rotary Tube Furnaces Across Industries

• Battery Recycling and Materials Recovery: Rotary tube furnaces are widely used in the recycling of lithium-ion and other advanced batteries. They enable safe thermal pre-treatment to deactivate cells, pyrolysis to remove organic binders, and calcination to purify black mass. These steps are essential for recovering valuable metals like lithium, cobalt, and nickel, while ensuring environmental compliance and process safety.
• Advanced Ceramics and Powder Metallurgy: In the production of technical ceramics and metal powders, rotary tube furnaces provide precise control over temperature and atmosphere. This is crucial for sintering, calcination, and reduction processes, resulting in high-purity, uniform materials used in electronics, aerospace, and medical devices.
• Catalyst Manufacturing and Regeneration: The chemical and petrochemical industries rely on rotary tube furnaces for the synthesis and regeneration of catalysts. These furnaces facilitate controlled calcination, activation, and reduction steps, ensuring optimal catalyst performance and longevity.
• Nanomaterials and Specialty Chemicals: Rotary tube furnaces are instrumental in producing nanomaterials, such as carbon nanotubes, metal oxides, and advanced composites. Their ability to maintain uniform heating and controlled atmospheres supports the synthesis of high-quality, consistent nanostructures for use in energy storage, sensors, and coatings.
• Environmental and Waste Treatment: These furnaces are also used for the thermal treatment of hazardous wastes, contaminated soils, and industrial byproducts. By operating under controlled conditions, rotary tube furnaces can safely decompose organic pollutants, immobilize heavy metals, and reduce the volume of hazardous materials for safer disposal.
• Food and Biomass Processing: In the food and bioenergy sectors, rotary tube furnaces are used for roasting, drying, and pyrolyzing biomass. This enables the production of biochar, activated carbon, and other value-added products from agricultural residues and organic waste.

Sustainability & Safety

• Energy-efficient heating and heat recovery options reduce operational costs.
• Sealed systems minimize emissions and exposure to hazardous materials.
• Precise control over process conditions supports cleaner, safer, and more sustainable recycling operations.

Rotary tube furnaces are a cornerstone of modern thermal processing, offering unmatched versatility and control. For startups in battery recycling and advanced materials, investing in the right rotary tube furnace technology is key to achieving scalable, high-quality, and sustainable production.

Kickstarting Battery Recycling: A Thermal Perspective

With the surge in electric vehicles and portable electronics, the demand for lithium-ion battery recycling is growing rapidly. Startups entering this space face unique challenges, especially in selecting and integrating the right thermal process equipment to safely and efficiently recover valuable materials. This newsletter explores how thermal equipment manufacturers can support these emerging ventures.

Thermal Processing is Critical in Battery Recycling

Thermal processing is a foundational step in the battery recycling workflow, especially for lithium-ion batteries. It enables safe handling, efficient material recovery, and environmental compliance. Startups entering this space must understand the value of thermal technologies in transforming hazardous battery waste into reusable resources.

• Safe Deactivation and Pre-Treatment: Before any mechanical or chemical processing, batteries must be safely deactivated to prevent fire, explosion, or toxic gas release. Thermal pre-treatment systems, such as low-temperature ovens or controlled-atmosphere furnaces, are used to evaporate residual electrolytes and deactivate reactive components. This step is essential for worker safety and equipment protection.
• Pyrolysis and Binder Removal: Electrodes in lithium-ion batteries are bound with organic polymers like PVDF (polyvinylidene fluoride). Pyrolysis, conducted in oxygen-free environments at temperatures between 400–600°C, breaks down these binders and separates active materials from current collectors. This process produces a “black mass” rich in lithium, cobalt, nickel, and graphite: ready for further recovery.
• Calcination and Roasting for Material Recovery: Calcination is used to remove carbon residues and moisture from black mass, improving its purity and reactivity. Roasting, often performed in oxidizing atmospheres, converts metal compounds into oxides, making them more amenable to hydrometallurgical leaching. These thermal steps are crucial for maximizing recovery rates and ensuring downstream efficiency.

Equipment Requirements

Startups need scalable, modular, and cost-effective thermal systems. Manufacturers should focus on:

• Compact Rotary Kilns or Furnaces: Ideal for small-scale pyrolysis and calcination, with controlled atmospheres and temperature zones.
• Batch or Continuous Reactors: Suitable for flexible processing of varied battery chemistries.
• Off-Gas Treatment Systems: Crucial for capturing and neutralizing volatile organic compounds (VOCs) and fluorinated gases released during heating.
• Automation & Safety Controls: Integrated sensors, inert gas purging, and emergency shutdown systems to ensure safe operation.

Partnering for Success: Strategic Support

Startups in battery recycling often face steep technical and operational learning curves. Thermal process equipment manufacturers can play a pivotal role in accelerating their success by offering targeted support in three critical areas:

• Process Consultation: Early-stage companies benefit immensely from expert guidance on thermal reaction pathways, temperature profiles, and material handling strategies. By offering process consultation, manufacturers can help startups design safe, efficient workflows tailored to specific battery chemistries and recycling goals.
• Scale-Up & Pilot Line Setup: Transitioning from lab-scale experiments to pilot-scale operations is a major hurdle for startups. Equipment providers can assist by supplying modular systems for pyrolysis, calcination, and roasting, along with instrumentation for data collection and process optimization. This enables startups to validate their technology and prepare for commercial deployment.
• Custom System Design: Every recycling operation has unique feedstock, throughput, and environmental constraints. Manufacturers can offer custom-designed thermal systems such as rotary kilns, fluidized bed reactors, or batch furnaces engineered to meet specific performance, safety, and compliance requirements. Tailored solutions ensure scalability and long-term viability.



Battery recycling is not just a business opportunity; it’s a sustainability imperative. Thermal process equipment manufacturers are uniquely positioned to empower startups with the tools and expertise needed to build a cleaner, circular battery economy.



In today’s fast-paced world of materials manufacturing, the need for precision thermal processing is crucial. Whether it’s making nanomaterials like graphene, activating catalysts, or treating powders and films for electronics, the performance of thermal equipment affects product quality, consistency, and scalability. As industries explore innovations in semiconductors, energy storage, aerospace, and defence, choosing the right furnace is a key decision. Among various options, split tube furnaces and rotary tube furnaces are two of the most versatile systems. Each has distinct advantages tailored to specific needs. Split tube furnaces are known for their precision, access, and multi-zone control, making them great for high-purity, static processes. In contrast, rotary tube furnaces excel in continuous, dynamic processing, particularly for powders and bulk materials that need better mixing.

Split Tube Furnaces: Precision with Access

Split tube furnaces have a hinged body that lets you open the heating chamber for easy access to substrates and internal parts. These furnaces work well for Chemical Vapor Deposition (CVD), annealing, and other processes that need precise temperature control and uniform heating. Their multi-zone heating features make them perfect for research and high-purity applications like graphene synthesis and semiconductor processing.

Key Benefits:

• Multi-zone temperature control
• Easy substrate handling and maintenance
• Great for static or batch processes
• High uniformity and repeatability

Rotary Tube Furnaces: Continuous Process

Rotary tube furnaces use a rotating quartz or ceramic tube that moves materials continuously through the heated area. This motion improves mixing, ensures uniform heat exposure, and supports ongoing processing, which makes rotary furnaces ideal for treating powders, activating catalysts, and thermal decomposition.

Key Benefits:

• Continuous material flow
• Improved mixing and uniform heating
• Suitable for bulk powder processing
• Great for scalable industrial applications

Choosing the right furnace for your thermal processing needs requires understanding your material type, process goals, and production scale. Split tube furnaces work best for applications that need high precision, such as thin film deposition, nanomaterial synthesis, and semiconductor annealing. Their multi-zone heating and easy access design make them particularly suited for static or batch processes where uniform temperature control and substrate handling are crucial. Conversely, rotary tube furnaces are more appropriate for continuous, high-throughput operations involving powders, catalysts, or bulk materials. The rotating tube enhances mixing and ensures consistent heat exposure, making it a top choice for scalable industrial applications. While split tube furnaces provide better control and flexibility for research and high-purity tasks, rotary tube furnaces offer efficiency and automation for dynamic, large-volume processing. Your decision should hinge on whether you prioritize precision and control or throughput and continuous operation.

Both types of furnaces have important roles in modern thermal processing. Split tube furnaces shine in precision, control, and access, making them perfect for high-purity and research-driven applications. On the other hand, rotary tube furnaces deliver unmatched efficiency for continuous, high-volume processing of powders and bulk materials. The right choice depends on your material type, process goals, and production scale.

Hydrogen is becoming an important part of the shift to cleaner energy and better industrial processes. Its unique properties, such as being light, reactive, and having high energy density, make it a valuable fuel and reactant in many thermal process industries. However, these same properties also create serious safety challenges. For materials researchers using thermal process equipment, it is vital to understand and manage the risks linked to hydrogen to ensure safe experimentation and innovation.

Material Researchers must Prioritize Hydrogen Safety

High Flammability and Explosion Risk

Hydrogen has a very wide flammability range, igniting between 4% and 77% concentration in air. Its low ignition energy means that even a small leak can lead to a major hazard. Additionally, hydrogen flames are almost invisible in daylight, making it difficult to detect fires without specialised sensors.

Leakage Propensity

Hydrogen molecules are the smallest of any element, allowing them to pass through tiny gaps in seals, joints, or valves that would keep other gases contained. Detecting and controlling leaks require careful system design and constant attention.

Material Compatibility

Hydrogen can seep into and weaken many common materials, especially carbon steels and some alloys. This can affect the long-term durability of piping, vessels, and process components, leading to severe failures if not addressed in advance.

Cryogenic Hazards

When stored or used in liquid form, hydrogen is extremely cold. Accidental contact can cause serious frostbite, and thermal cycling can stress materials, potentially causing brittle fractures if not handled properly.

Best Practices for Hydrogen Safety

• Use stainless steels, aluminum alloys, or hydrogen-compatible composites that have been shown to resist embrittlement and permeation.
• Use continuous hydrogen detectors at equipment joints, near ceilings, and in confined spaces.
• Strong joining techniques like welded connections over threaded or gasketed ones whenever possible.
• Regularly test and maintain seals, valves, and joints.
• Design areas with effective ventilation systems to quickly disperse any leaked hydrogen.
• Install UV/IR flame detectors since hydrogen burns with an almost invisible flame.
• Use automatic shutdown and isolation valves connected to gas and flame sensors.
• Follow thorough inerting and purging routines during start-up, shutdown, and maintenance to prevent explosive environments.

Practical Safety Features for Research Labs

• Pressure relief devices designed specifically for hydrogen service.
• Clearly labelled, colour-coded hydrogen process lines and storage tanks.
• Automated and backup gas shutoff controls.
• Comprehensive alarm and monitoring systems with clear escalation protocols.
• Use non-sparking tools and inherently safe equipment around hydrogen systems.

Hydrogen’s potential as a clean energy resource and industrial reactant is significant, but its dangers must be taken seriously. For researchers, incorporating safety into every part of thermal process equipment, like material selection, design, operation, and maintenance, is essential for innovation in materials research and personal safety. By diligently applying layered safety features and constant vigilance, the research community can harness hydrogen’s benefits while keeping its risks under control.

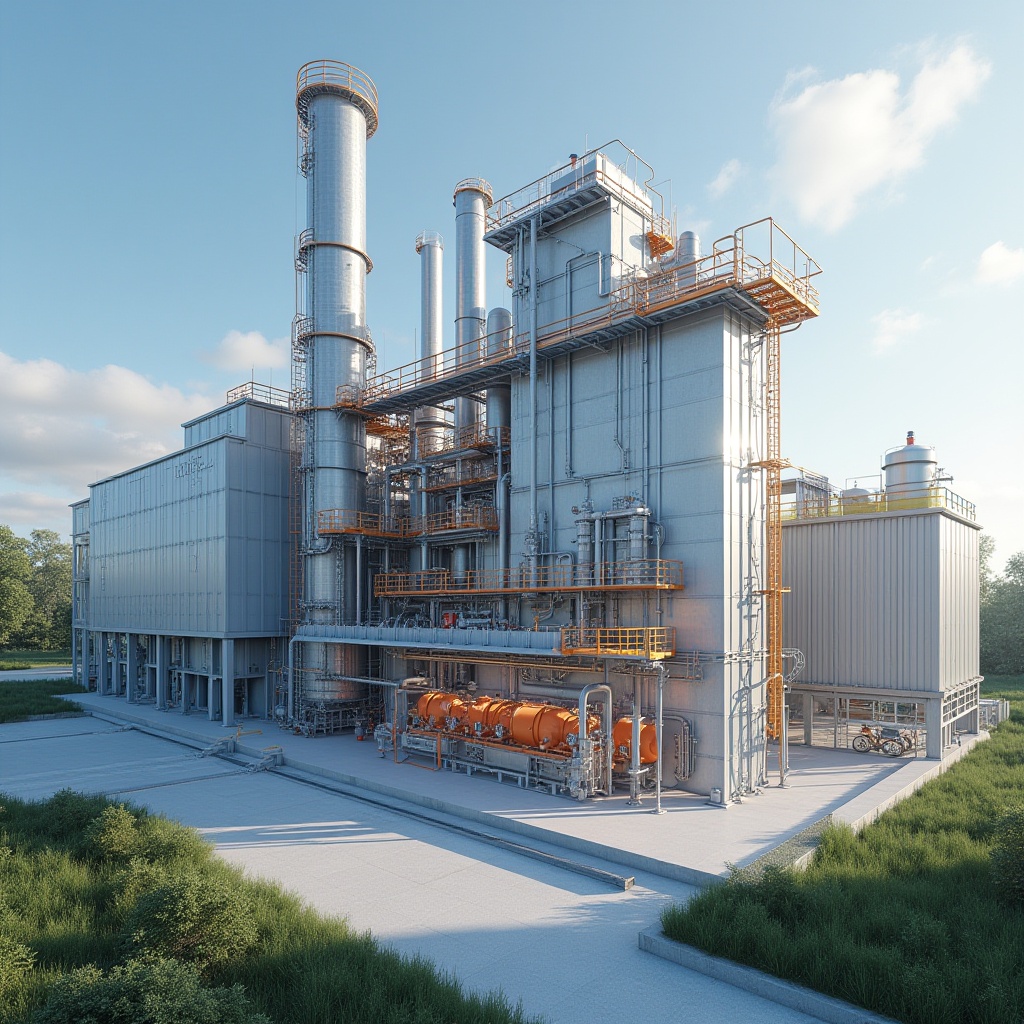

The iron and steel industry is positioned at a significant turning point. As global demand for green steel grows, researchers and engineers are exploring new technologies to eliminate carbon emissions in the iron ore reduction process. One of the most promising options is Hydrogen Plasma Smelting Reduction (HPSR). This high-temperature process uses atomic hydrogen plasma to reduce iron oxides without carbon, producing only water vapour as a byproduct. Recent advances in pulsed arc reactors and gas-stabilised hydrogen plasmas are reviving this idea. Experimental setups have reached important milestones in both plasma control and ore reduction kinetics.

Reduction Phenomenon:

At the core of the HPSR system is a magnetically driven arc passing through a mixture of hydrogen and argon. This creates a high-energy plasma filled with atomic hydrogen, the most reactive form of hydrogen. Fine iron oxide particles are injected into this plasma zone, where they undergo rapid thermal and chemical reduction:

Fe₂O₃ + H → 2FeO + H₂O

FeO + 2H → Fe + H₂O

Unlike traditional carbon-based methods, this technique avoids CO₂ emissions altogether.

Early trials show that atomic hydrogen remains active for up to 4 milliseconds after the arc stops, allowing enough time for effective reduction. Even oxides like TiO₂ have been partially reduced in these conditions, showcasing the high reactivity and potential scalability of the system.

Reactor Design Requirements

The Hydrogen Plasma Smelting Reduction (HPSR) system utilises a pulsed DC arc with energy inputs of up to 5 kW, controlled via Silicon-Controlled Rectifier (SCR) technology for precise power modulation. The arc maintains stable lengths exceeding 20 mm and operates with lifetimes sufficient to achieve complete reduction of iron oxides such as FeO and Fe₂O₃. Atomic hydrogen generation is confirmed through Hα spectral emissions, which indicate the persistence of reactive hydrogen species even after the arc discharge ends. Iron ore fines are introduced into the plasma zone using a powder feed system that delivers material at a consistent rate of approximately 3 grams per minute. These integrated advancements position HPSR as a compelling approach to decarbonising ironmaking, offering both high thermal efficiency and precise process control.

Influence on CO₂ emissions:

The steel sector contributes nearly 8% of global CO₂ emissions. Hydrogen-based direct reduction (DRI) is gaining traction, but plasma-based hydrogen systems provide an even more effective route to eliminate reliance on fossil fuels by avoiding solid reductants or natural gas. Additionally, HPSR is especially suited for high-grade ore fines. This allows for easier integration with renewable electricity sources and flexible batch-scale operation, making it ideal for future decentralised steel production models.





Current Status:

Current research efforts focus on scaling arc systems to handle higher feed rates and longer residence times. These factors are crucial for increasing output in industrial applications. Improving arc stability under changing feedstock and gas flow conditions is another priority; consistent plasma behaviour is vital for effective reduction. Researchers also work to optimise the generation of atomic hydrogen. Their goal is to boost their reactivity and persistence within the reactor environment. At the same time, real-time diagnostic tools are being added to monitor plasma characteristics and track the progress of ore reduction processes. These advancements are setting the stage for pilot-scale projects, with support from collaboration among metallurgists, plasma physicists, and energy engineers.

“Hydrogen Plasma Smelting is moving beyond theory. It is becoming a practical solution for clean, flexible, and efficient ironmaking. As reactor technology and materials handling improve, HPSR may soon play a key role in carbon-free steel production.”
